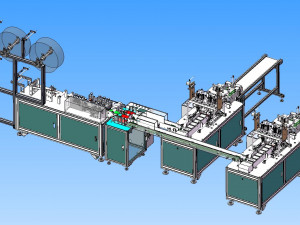

full set of drawings of automatic one drag two plane mask machine 3D 模型

full set of drawings of automatic one drag two plane mask machine (mechanical design + plc + electrical + pneumatic components)
1、 functional requirements of disposable automatic mask machine:

1. or it can be cut and welded by the automatic belt winding machine (or the two-piece belt can be welded together by the two-way winding machine, and then it can be welded by the automatic belt winding machine ）；

2. the equipment will not cause adverse effects on the products, including deformation, damage and scratched appearance;

3. the equipment shall be equipped with anti misoperation device to ensure the safety of operators and normal use of equipment;

4. the whole movement process of the equipment shall be controllable, with fault alarm function and easy disassembly and maintenance;



2、 introduction and characteristics of disposable automatic mask machine

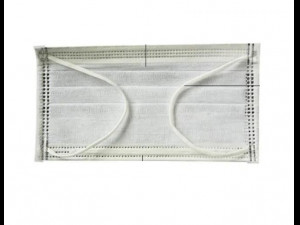

the disposable full-automatic mask machine is mainly used for the automatic equipment of plane disposable mask made of non-woven fabric.

the disposable full-automatic mask machine 1. simple operation, stable operation, high efficiency of loading and unloading, 2. compact structure, less land occupation, the frame is made of aluminum alloy profiles, solid and beautiful without rust, 3. using mitsubishi plc of japan, self programming action, the machine type is transformable. it is a customized and highly automated production line for disposable masks.

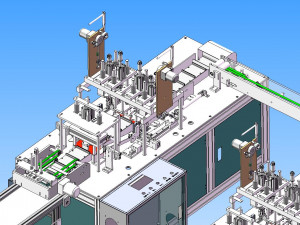

the disposable automatic mask machine mainly includes the following parts:

1. non woven fabric coil placement frame;

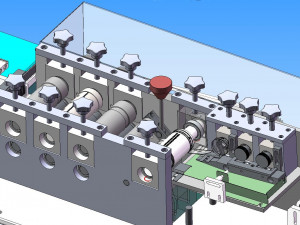

2. mask body machine lamination;

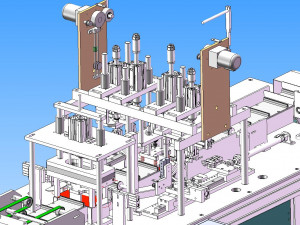

3. automatic straightening and cutting of nose bar;

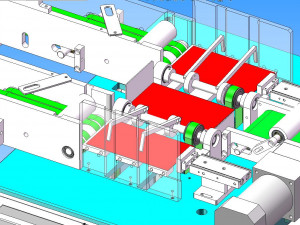

4. automatic folding, welding and cutting;

5. transfer conveyor belt;

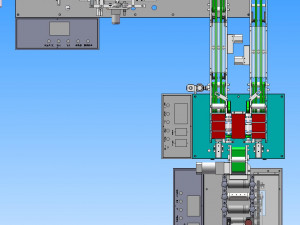

6. ear belt welding machine, automatic cutting conveyor belt, etc.



3、 main technical parameters of disposable automatic mask machine

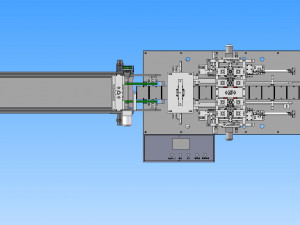

1. equipment appearance dimension: l6500 * w2800 * h1800mm

2. product size of the equipment: length ≤ 90mm, width ≤ 175mm, non-woven fabric no more than 3 layers

3. equipment efficiency: 90-110pcs / min;

4. workshop environment: no less than 100000 level

5. equipment power supply voltage: ac 220 v

6. equipment connecting pressure: 0.4-0.7mpa;

7. equipment power: ≈ 10kva;

8. total weight of equipment: ≈ 1300kg;

9. number of personnel required for a single equipment: 1 (one person can operate multiple such equipment).

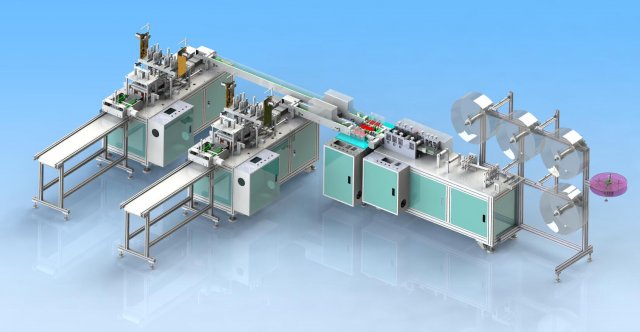

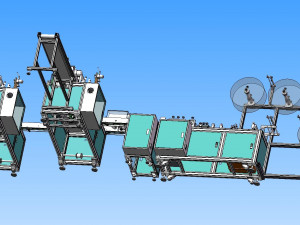

disposable automatic mask machine (one for two)

4、 production benefit of disposable automatic mask machine

1. the equipment has low requirements for personnel skills and proficiency; the equipment is easy to operate, and the labor demand is only once in a period of time. the whole process of operation is automatic without manual operation, and the requirements for personnel skills and proficiency are low;

2. the equipment can save manpower: the operation of the equipment does not need manual participation all the time, which realizes the unmanned operation and saves labor compared with the existing state;

3. the equipment reduces the labor intensity; the manual requirement of this equipment is only the loading and unloading code plate operation, which is simple and no difficulty. the last material can be buffered for a period of time, which reduces the labor intensity of labor and requires low requirements for operators; 打印准备: 否
