MS400 Scraper Conveyor 3D 模型

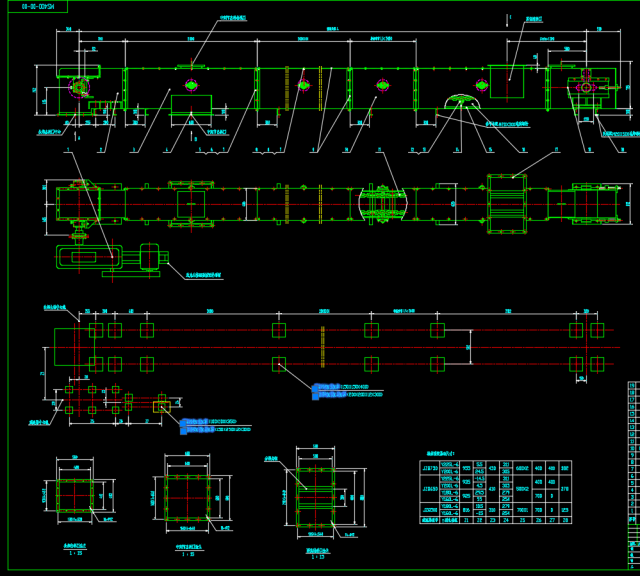

MS400 Scraper Conveyor
The working principle of the scraper conveyor is that the open chute is used as a bearing member for coal, gangue or materials, and the scraper is fixed on the chain (composed of a scraper chain) as a traction member. When the head drive part is started, the sprocket on the head shaft is driven to rotate, so that the scraper chain circulates and drives the material to move along the chute until it is unloaded at the head. The scraper chain byp***** the sprocket for a stepless closed cycle operation to complete the conveying of materials. 打印准备: 否
