WG 0019 - Trailer 3D 模型

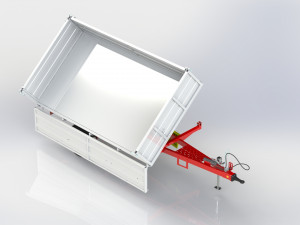

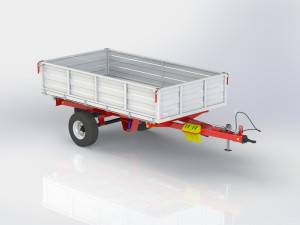

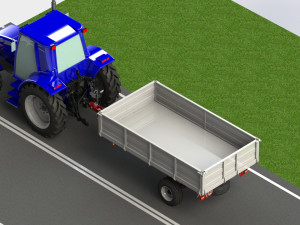

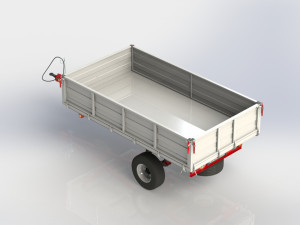

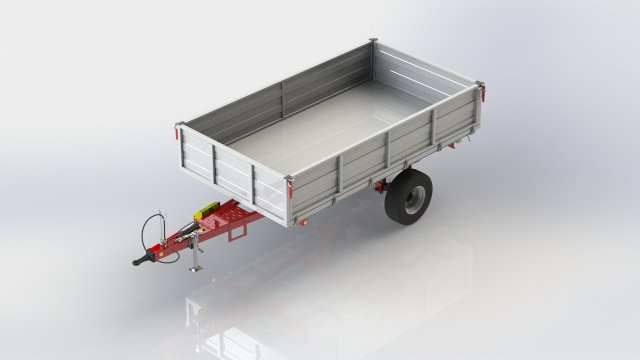

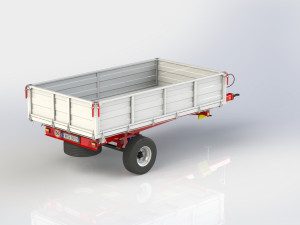

Single axle trailer.
For transporting bulk materials

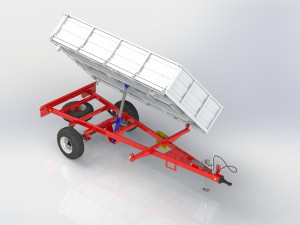

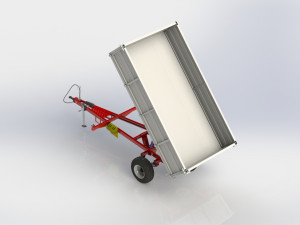

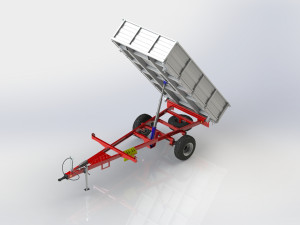

Three-way unloading
Maximum trailer load: 3700 kg.
Body volume: 4.7 cubic meters.

This is full solidworks model.
Developed as design documentation for launch into production of this machine. According to the drawings and models, you can implement both single and serial production!
This lot contains a complete set of documentation. Models and drawings of all details made in SolidWorks 2020.
Design documentation for launch into production of this machine (in formats: *.sldprt; *.slddrw; *.sldasm; *.igs; *.stp; *.stl; oll cad drawings in *.pdf; programs for plasma (laser) saved in the format: *.DXF)

Modeled in SolidWorks 2020. The model contains the most popular formats:
SolidWorks: *.sldprt *.slddrw *.sldasm (NATIVE)
IGES: *.iges *.igs
STEP: *.step *.stp
Stereolithography: *.stl

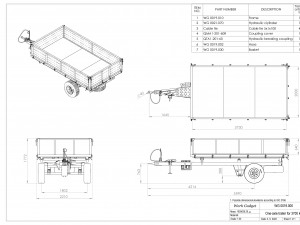

All CAD Drawings are saved in format *.PDF
Programs for plasma (laser) saved in the format: *.DXF
