pcba board automatic locking screw machine 3D 模型

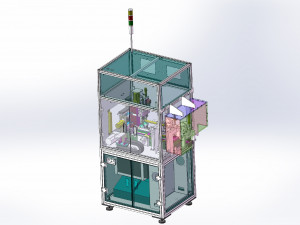

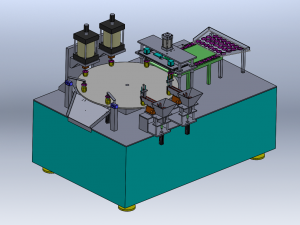

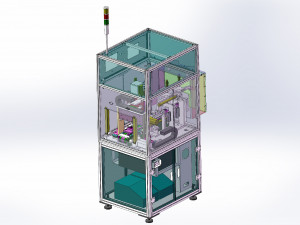

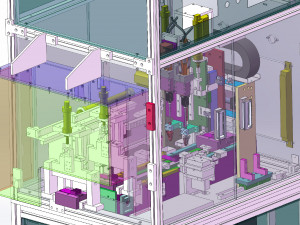

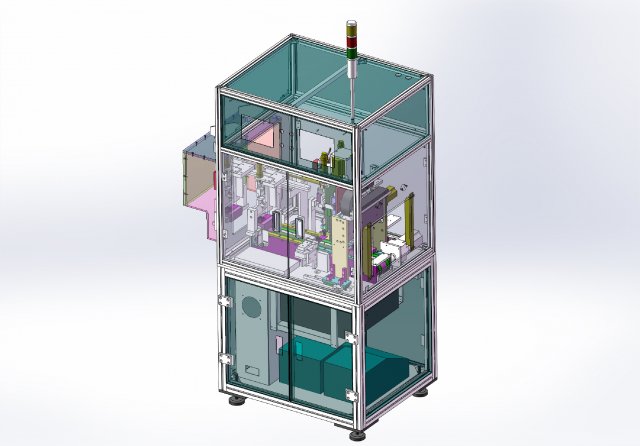

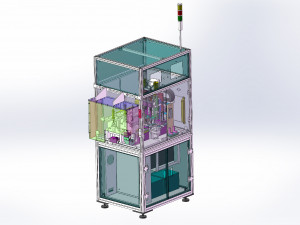

the pcba board automatic lock screw machine is a fully automatic on-line lock screw machine, a non-standard full-automatic lock screw machine, the solidworks 2012 source files.
after complete decompression of equipment drawings, there are more than 500 parts and complete engineering drawings and a list of parts and standards to be purchased. the original stationary drawing sheets can be clearly seen and the functions of equipment are different.there are:1.transfer belt feed,2.automatic uplift secondary position,3.sensor detection in position,4.double head lock screw construction to pcba part at the same time,5.the screw lock and positioning structure returns,6.pcb plate exits from conveyor belt,7.the principle of movement is this,which is why automatic lock screw drawing(which contains material)is very welcome back to pcba part. 打印准备: 否
